| Product Features
|
- Universal input voltage 347 Vac
- Constant voltage options 12/24/36/48V
- PFC, Flicker Free and Isolated design
- 3-in-1 dimming (PWM/1-10V/Resistor)
- Open/Short/Over-Voltage/Over-Temperature protection
- 2kV to 6kV surge protection
- Suitable for UL dry and damp location
- 5 years warranty
| Electrical Spec |
|
Main Series |
3V24S60D | |
|---|---|---|
| AC Input | Input Voltage | 347 Vac |
| Input Frequence | 60Hz | |
| Lakage Current | <0.75mA | |
| Turn on Time | <1s | |
| Inrush Current | <45A | |
| Power Factor | >0.9 | |
| THD | <20% | |
| DC Output | Output Current | 0.25 - 2.5A |

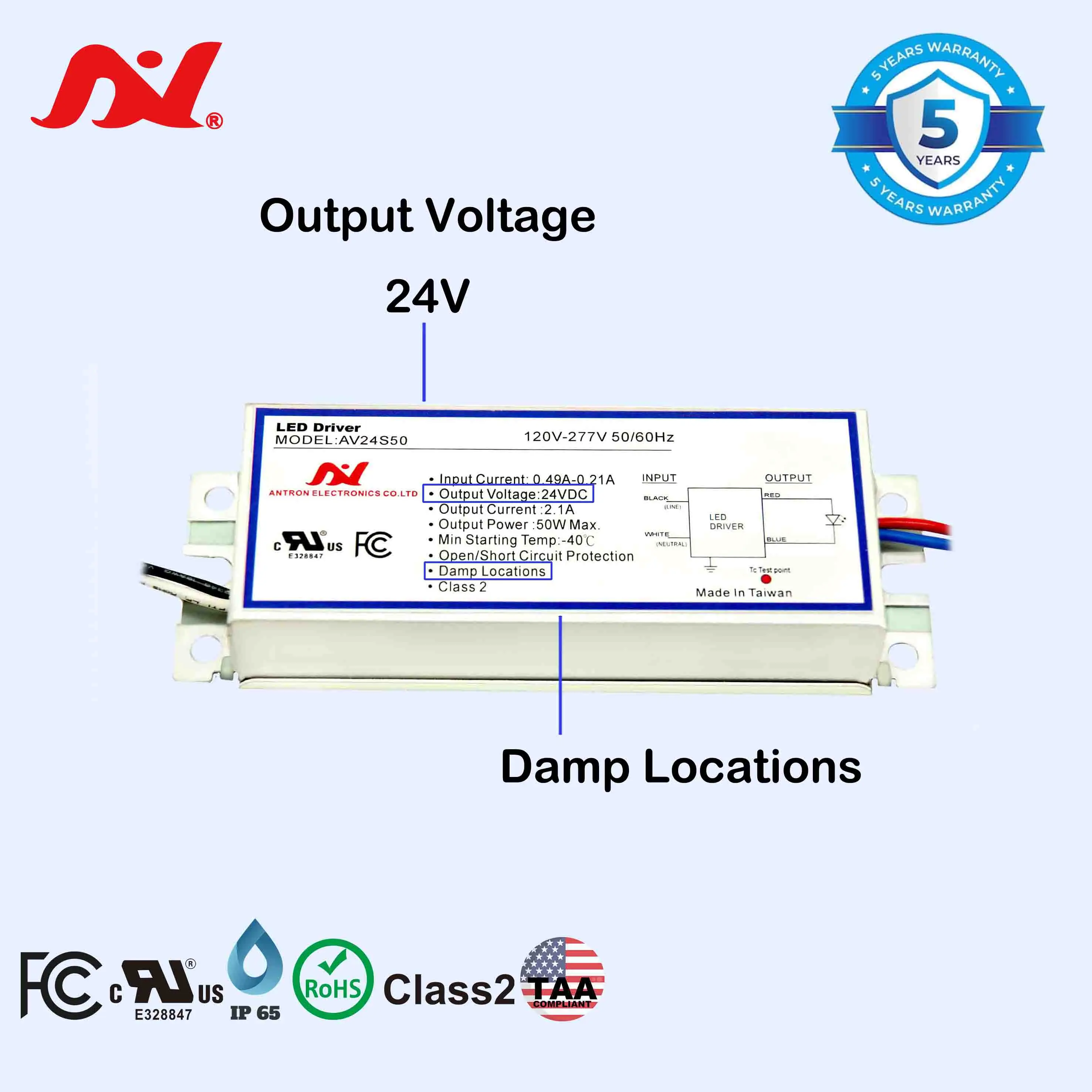

| Output Voltage | 24V | |
| Output Power | 60W | |
| Line Regulation | ±5% | |
|
Efficiency @Highest Vin |
88% | |
| Protecion | Short Circuit | Hiccup mode,recovers automatically after fault condition is removed. |
| Over-Voltage | Output current decade mode,recovers automatically after fault condition is removed. | |
| Over-Temperature | Shut down o/p voltage,re-power on to recover. | |
| Surge | 2kv | |
| Environment | Operation Temperature | Tcse -40°C~90°C |
| Storage Temperature | Tcse -40°C~90°C | |
| Humidity | 10%~90% | |
| Safety | Safety Approval |
UL8750 UL1310 |
| UL/cUL Class2 | V | |
| UL/cUL Type TL | - | |
| Withstand Voltage | I/P-O/P. 2.0K Vac,I/P-FG:2.0K Vac,O/P-FG:0.5K Vac | |
| Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100Mohm/500VD | |
| Noise | Sound Rating Class A | |
| EMC | EMI |
FCC Part 15 class A UL8750 CSA C22.2 No.250.13-14 ICES-005 Issue 4 |
| EMS |
FCC Part 15 class A UL8750 ICES-005 Issue 4 |
|

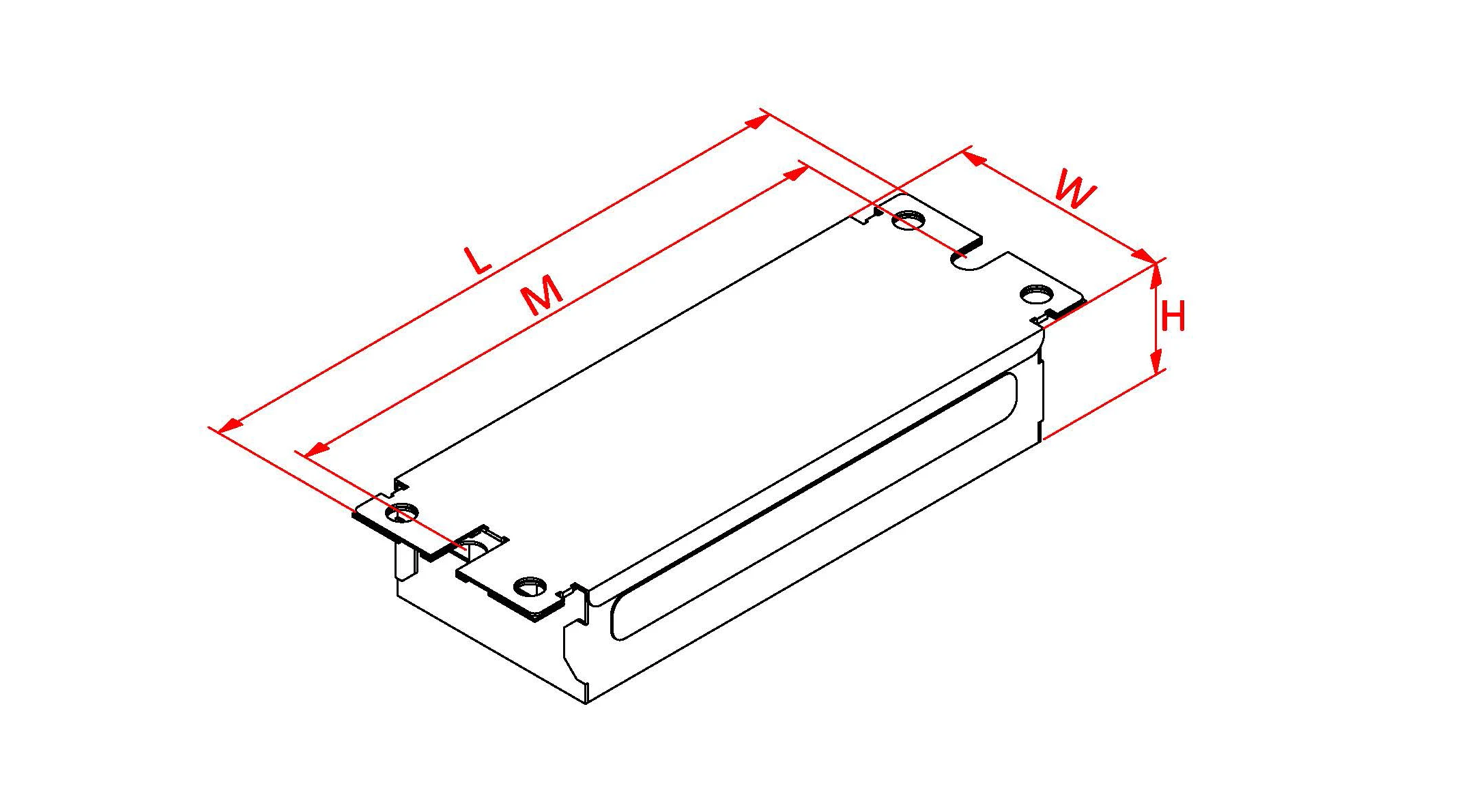

| Model Series | Case Code | L | W | H | Unit |

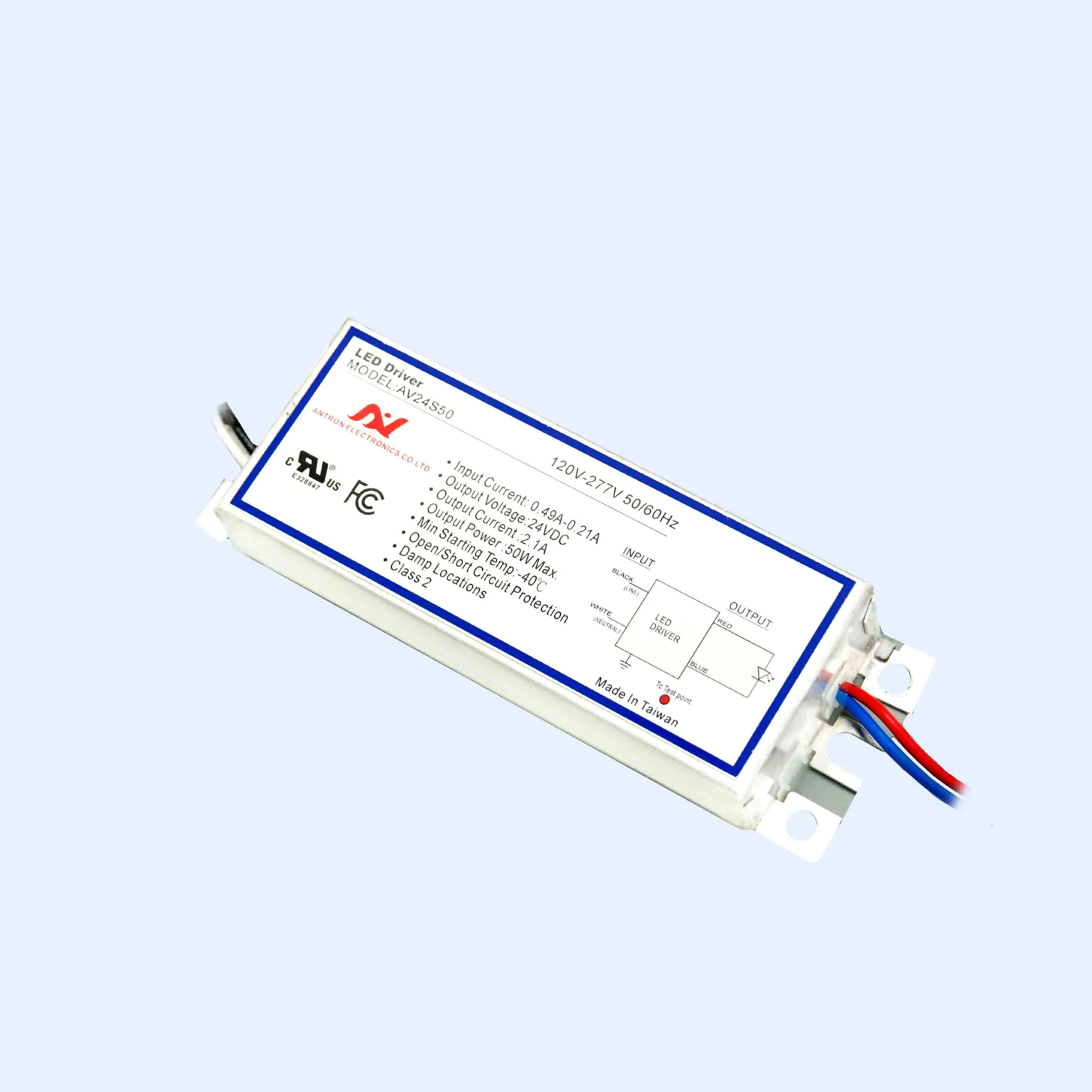

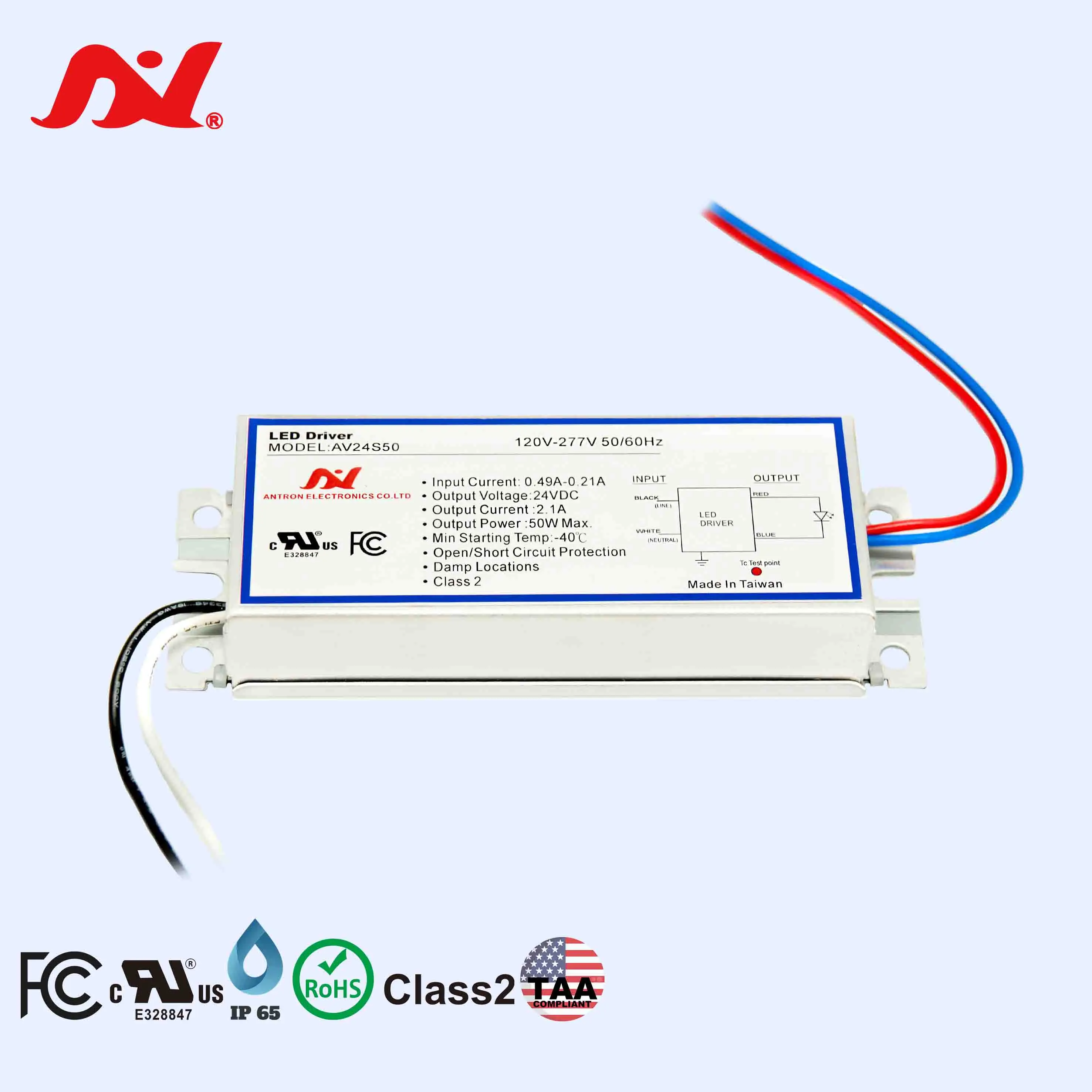

| AV24S50 | AM13 | 17.2 | 6.1 | 3.1 | mm |

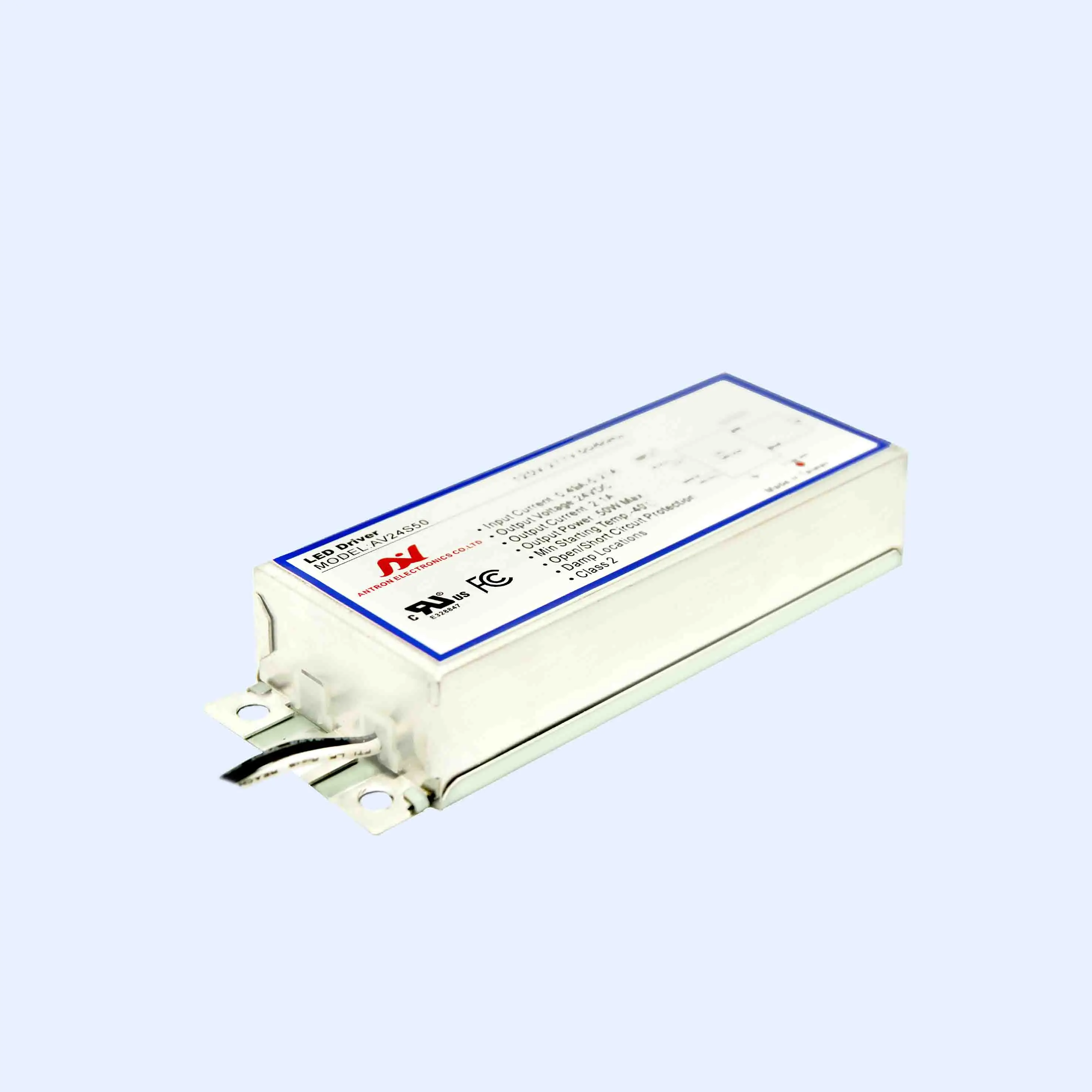

| Product Series |

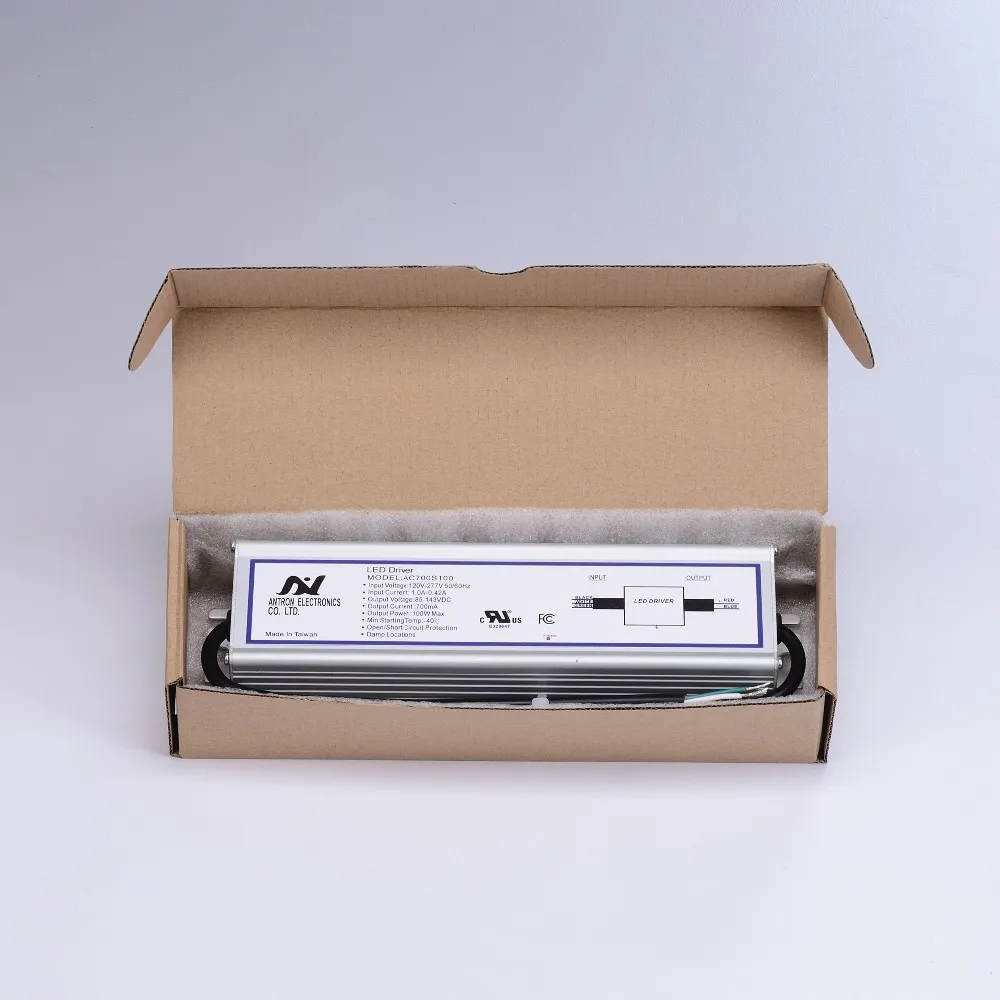

| Packing |
Packing Information
5 to 40 pieces per carton depends on model.
Individual packing is optional.
